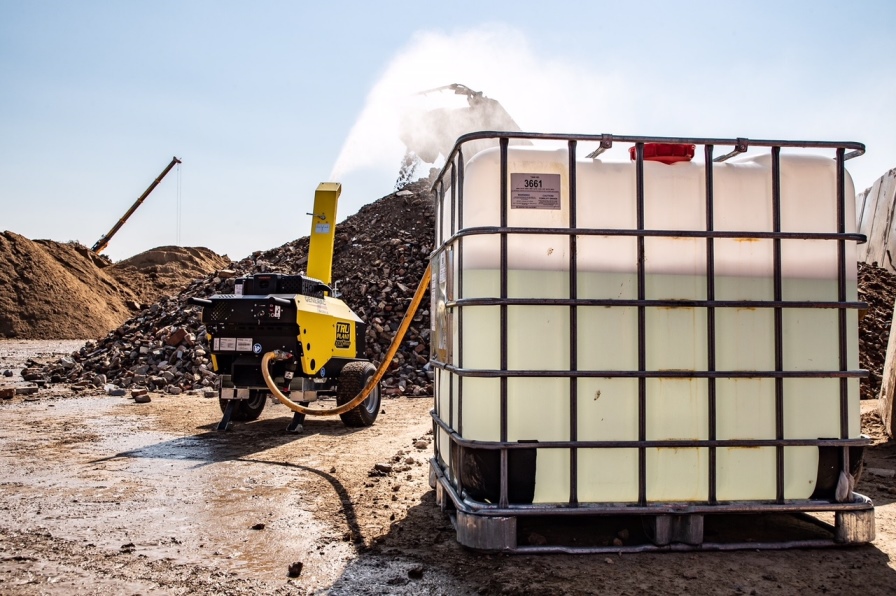

Dust Control Unit

PowerJet – Dust control system

PowerJet is the new Dust Fighter model equipped with spray nozzle arm, built-in engine and wheels for easy trasportation. The arm can be manually adjustable horizontally and vertically, and thanks to the inner high pressure pump coupled with the diesel engine, the nebulized water spray can reach up to 30 metres.

Standard Equipment

  • Integrated control panel
  • Spray head with two nozzles
  • High pressure pump coupled with diesel engine
  • Protection against running dry pump
  • Nozzle pressure gauge
  • Water drain tap
  • Inlet water filtration system
  • Hand trolley
  • Forklift pockets on 3 sides
  • Central lifting eye
  • Manual rotation
  • Manual tilting

Options

  • Customized colour (RAL)
Category:

Description

PowerJet Technical Data
Max. horizontal range (without wind) 30 m
Water connections available UNI 45 / STORZ / CAMLOCK
Max. inlet pressure allowed 6 bar
Water consumption (min. / max.) 44 / 50 l/min
Water inlet filter 170 μm
Rotation angle 90°
Tilting angle (min. / max.) +0° / +40°
Diesel engine Yanmar L100N V6 (Stage V)
Cylinder(s) 1
Engine cooling Air
Engine speed (min. / max.) 2900 / 3100 RPM
Fuel tank 5.4 litres
Running time (at 2900 RPM) 3 h
Avg. noise pressure level 87 dB(A) @ 7 m
Transport dimensions (L x W x H) 1291 x 990 x 1072 mm
Work dimensions (L x W x H) 1605 x 990 x 1563 mm
Dry weight 210 Kg
